What Is a Rubber Chevron Conveyor Belt and When Should You Use It in Material Handling?
Rubber Chevron Conveyor Belt Manufacturer & Supplier:
This article explains what a rubber chevron conveyor belt is, how it works, where it is used, and why it is the most reliable inclined conveyor solution for industries across India. Whether you are sourcing chevron conveyor belts in Gujarat, Ahmedabad, or anywhere in India, this comprehensive guide helps you make the right procurement decision and connects you with India's trusted chevron PU conveyor belt manufacturer.
What Is a Rubber Chevron Conveyor Belt? A Complete Definition for Industry Professionals
A rubber chevron conveyor belt also called a cleated rubber conveyor belt or V-pattern conveyor belt is a specially engineered industrial rubber belt featuring raised V-shaped or Y-shaped cleats vulcanized directly onto its carrying surface. These cleats, arranged in a distinctive chevron (arrowhead) pattern, act as retaining barriers that grip loose, granular, or slippery bulk materials during steep-angle transportation.
Unlike a general purpose conveyor belt or a flat rubber PU conveyor belt, a chevron conveyor belt is purpose-built to transport materials at inclination angles of up to 40 degrees without slippage or material rollback. The cleats are an integral part of the belt construction not add-ons making the bond between the cleat and the rubber base exceptionally durable and long-lasting.
At its core, a rubber chevron conveyor belt consists of:
- Rubber cover - available in grades M24, HAR (Heat and Abrasion Resistant), SAR (Super Abrasion Resistant), HR (Heat Resistant), OR (Oil Resistant), and custom grades
- Carcass - EP (Polyester-Nylon) or NN (Nylon-Nylon) fabric construction available in 2, 3, or 4 ply for varying load ratings
- Belt rating - 200 to 800 kN/m to match diverse industrial load requirements
- Cleat profile - multiple cleat shapes (V, U, Y, T) to suit different materials and angles
- Edge type - cut edge or moulded edge, with hot, cold, or mechanical splice options
As one of the leading rubber conveyor belt manufacturers in Gujarat, Jagruti Conveyor Belts Pvt. Ltd. manufactures chevron belts across a range of widths, cleat heights (15 mm to 25 mm), and carcass ratings, engineered precisely for Indian industrial conditions.
Call Now
How Does a Rubber Chevron Conveyor Belt Work? The Engineering behind the Grip
The secret to a chevron belt's performance lies in its cleat geometry. When bulk material is loaded onto the belt at the bottom of an incline, the raised cleats create individual containment pockets. As the belt moves upward, these pockets prevent material from sliding back, maintaining a steady, consistent material flow even on steep gradients that would cause a standard flat rubber belt to fail completely.
Chevron Conveyor Belt Key performance advantages of the chevron design:
- The V-cleat and Y-cleat profiles distribute material load evenly across the belt width, reducing stress concentration
- Vulcanized cleat bonding ensures the cleats do not delaminate even under heavy load or wet conditions
- Multiple cleat heights (15 mm to 25 mm) allow customization based on material lump size and required grip
- The chevron pattern self-centers material on the belt, reducing spillage and the need for skirtboards at inclined sections
This engineering makes the rubber chevron conveyor belt a true heavy duty conveyor belt solution for inclined material handling not a workaround, but a precision-designed industrial product.

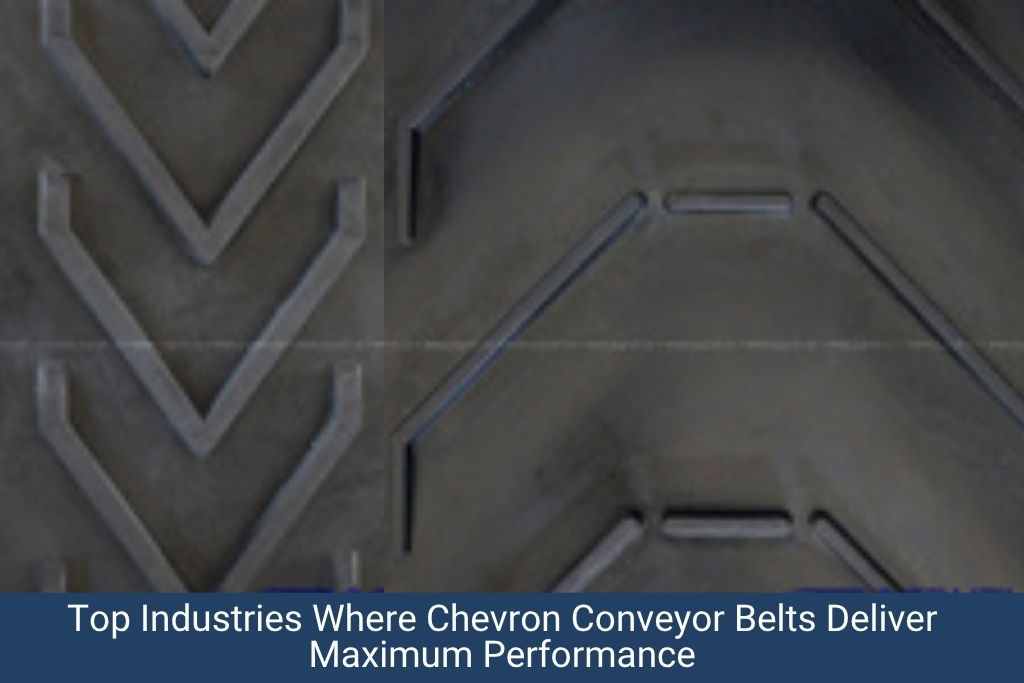

5 Industries Where Rubber Chevron Conveyor Belts Deliver Maximum Value
Choosing the right industrial conveyor belt starts with understanding your industry's specific demands. Chevron conveyor belts are not just for one sector, they solve inclined transport challenges across multiple industries:
Our Other Product
PVC Conveyor Belt Manufacturers in AhmedabadCement Industry
Cement plants in Gujarat and across India rely on chevron belts to transport clinker, raw meal, limestone, and fly ash at steep inclines between plant sections. The abrasion-resistant rubber cover (M24/SAR grade) handles the highly abrasive nature of cement raw materials while the cleat profile prevents rollback in multi-floor plant layouts.
Packaging and Logistics Industry
In packaging lines and distribution warehouses, particularly in Ahmedabad's industrial zones chevron conveyor belts efficiently move cartons, bags, and packaged goods between floor levels without the need for elevators or manual handling. The cleats provide a secure grip even on smooth-surfaced packaging.
Wood Processing Industry
Sawmills, plywood manufacturers, and wood chip processors use chevron rubber belts to convey wood chips, sawdust, and timber pieces at inclined angles. The cleat height prevents rollback of irregular-shaped wood pieces that would easily slip on a flat belt.
Road Construction and Infrastructure
Hot mix asphalt plants, crushers, and road construction equipment use chevron conveyor belts to transport aggregates, gravel, and crushed stone at the steep angles typical in mobile and stationary processing equipment.
Recycling Industry
Material recovery facilities and e-waste recyclers use chevron belts to convey mixed recyclables up sorting inclines. The ability to handle mixed, irregular materials of varying weights makes the chevron pattern ideal for this demanding application.
Airport Baggage Handling
Baggage conveyor systems at airports deploy chevron belts on inclined sections between check-in and sorting floors, ensuring reliable, damage-free baggage transport at controlled speeds.

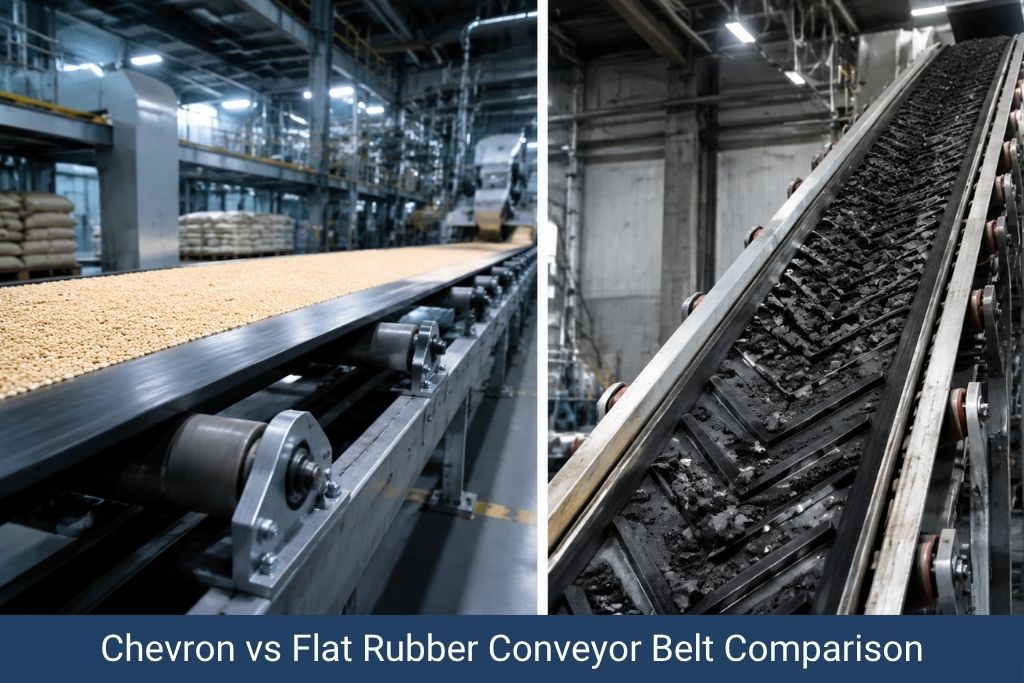

Rubber Chevron Conveyor Belt vs. General Purpose Rubber Belt: When to Choose Which?
Many procurement managers and plant engineers ask: when does a flat rubber conveyor belt work, and when do I need a rubber chevron belt? Here is a direct comparison:
| Parameter | General Purpose Rubber Belt | Rubber Chevron Conveyor Belt |
|---|---|---|
| Inclination angle | Up to 18–22 degrees | Up to 40 degrees |
| Material type | Dry, non-sticky bulk materials | Loose, granular, slippery, or mixed materials |
| Material rollback risk | High above 20° | Eliminated by cleats |
| Belt cost | Lower | Moderate premium for cleat engineering |
| Installation complexity | Standard | Standard (hot/cold/mechanical splice available) |
| Maintenance | Standard belt maintenance | Periodic cleat integrity inspection added |
| Ideal applications | Flat and low-incline conveyors | Steep incline and elevator-replacement applications |
The rule of thumb: if your conveyor inclines beyond 20 degrees or handles slippery/granular material on any incline, a rubber chevron conveyor belt is the technically correct and cost-effective choice.
Jagruti Chevron Conveyor Belt Range: Technical Specifications That Set the Industry Standard
Jagruti Conveyor Belts Pvt. Ltd., a trusted chevron conveyor belt manufacturer in India, offers a precisely engineered range of chevron belt profiles designed to match the widest variety of Indian industrial applications:
| Profile Type | Cleat Covering Width | Belt Width Range | Cleat Pitch | Cleat Height |
|---|---|---|---|---|
| JAG V 250 | 250 mm | 500–600 mm | 150 mm | 15 mm |
| JAG U 540 | 540 mm | 600–800 mm | 250 mm | 18 mm |
| JAG V 385 | 385 mm | 500–800 mm | 250 mm | 15 mm |
| JAG Y | 434 mm | 500–800 mm | 340 mm | 15 mm |
| JAG T 750 | 750 mm | 900–1200 mm | 335 mm | 25 mm |
Why Jagruti's chevron belt specifications matter for your operation:
- Wide width range (500 mm to 1200 mm) covers everything from light packaging lines to heavy-duty mineral conveyors
- Multiple rubber grades are M24, HAR, SAR, HR, OR ensure you get abrasion resistance, heat resistance, or oil resistance matched to your process
- EP and NN carcass options at 2, 3, and 4 ply provide tensile strength ratings from 200 to 800 kN/m
- Hot, cold, and mechanical splice compatibility means faster installation and lower belt conveyor installation costs
- Palletised packaging ensures safe delivery to project sites across India, including Gujarat, Rajasthan, Maharashtra, and beyond
Sourcing a chevron belt from Jagruti means accessing a complete ecosystem of conveyor belt systems and accessories that ensure your inclined conveyor runs at peak efficiency.
4 Unique Features That Make Jagruti Chevron Belts the Preferred Choice for Indian Industry
When Indian plant engineers and procurement managers source chevron conveyor belt manufacturers in Gujarat, they increasingly prefer Jagruti for four specific reasons:
- Dramatically reduced material wastage - The chevron cleat pattern contains loose bulk material within each pocket, eliminating the spillage losses that cost Indian plants lakhs of rupees annually.
- Steep-angle transport up to 40 degrees - Replace expensive elevator rubber conveyor belt systems or multi-story building layouts with a single inclined chevron belt conveyor system. This translates to significant CapEx savings on new plant projects.
- Long service life - Jagruti's vulcanized cleat bonding technology ensures that cleats do not separate from the belt base even under continuous load cycling, wet conditions, or thermal stress — giving Indian plant operators a superior return on belt investment.
- Custom engineering capability - Beyond standard profiles, Jagruti manufactures special custom chevron belts for oil and grease resistance (OR grade) and high-temperature material transport (HR/HAR grade), enabling use cases that generic conveyor belt suppliers cannot fulfil.
Whether you need a rubber conveyor belt manufacturer in Ahmedabad, conveyor belt services in Gujarat, or a pan-India conveyor belt supplier for your multi-location project, Jagruti is equipped to serve.
Email Us Today!
Conclusion: Partner with India's Trusted Rubber Chevron Conveyor Belt Manufacturer
A rubber chevron conveyor belt is not just a product, it is a productivity investment. When correctly specified and professionally installed, it eliminates material spillage, replaces expensive vertical transport equipment, and runs reliably for years with minimal maintenance. For Indian industries operating in cement, packaging, wood processing, road construction, recycling, and logistics, the chevron conveyor belt is the definitive solution for inclined material handling challenges.
Jagruti Conveyor Belts Pvt. Ltd., headquartered in Ahmedabad, Gujarat, is one of India's leading PU conveyor belt manufacturers, exporters, and suppliers of rubber conveyor belts, chevron conveyor belts, and complete conveyor belt systems. With decades of manufacturing experience, a comprehensive product range covering general purpose to specialty belts, and end-to-end services from installation to maintenance, Jagruti is the partner Indian industry trusts for conveyor belt requirements of every scale.
📞 Get a customized chevron conveyor belt quote today. 🌐 Visit https://jagruti.co/ to explore the full product range, request technical specifications, or connect with Jagruti's conveyor engineering team for your project requirements.
Rubber Chevron Conveyor Belts: FAQs
A rubber chevron conveyor belt is a specially patterned industrial rubber belt with V-shaped or Y-shaped cleats vulcanized onto its surface. Unlike a standard flat rubber conveyor belt, the chevron cleat pattern prevents loose or granular materials from rolling back on steep inclines of up to 40 degrees making it the preferred choice for cement, wood, recycling, and packaging industries across India.
Jagruti Conveyor Belts Pvt. Ltd., based in Ahmedabad, Gujarat, is among India's most trusted chevron conveyor belt manufacturers, exporters, and suppliers. Jagruti supplies chevron belts pan-India and internationally, with a full range of cleat profiles (V, U, Y, T types), belt widths from 500 mm to 1200 mm, and rubber grades including M24, HAR, SAR, HR, and OR. Visit https://jagruti.co/ to request a quote.
You should use a rubber chevron conveyor belt when: (a) your conveyor incline exceeds 20 degrees, (b) you are transporting loose, granular, or slippery bulk materials such as aggregates, wood chips, cement raw materials, or packaged goods at any incline angle, or (c) you need to replace a bucket elevator with a more cost-effective inclined belt solution. For flat or low-angle conveyors carrying dry non-sticky material, a general purpose rubber belt is sufficient.
Rubber chevron conveyor belts are widely used across Indian industries including cement plants, packaging factories, wood processing units, road construction machinery, recycling facilities, and airport baggage handling systems. Major industrial hubs in Gujarat (Ahmedabad, Surat, Vadodara, Rajkot), Maharashtra (Mumbai, Pune), and other states rely on chevron conveyor belts for steep-angle material handling. Jagruti Conveyor Belts supplies and installs chevron belts across all these regions.
The cost of a rubber chevron conveyor belt in India depends on belt width, carcass ply, rubber cover grade, cleat profile type, and order quantity. Specialty grades like heat-resistant (HR) or oil-resistant (OR) chevron belts are priced differently from standard M24 grade belts. For an accurate, project-specific price for chevron conveyor belts in Gujarat or anywhere in India, contact Jagruti Conveyor Belts Pvt. Ltd. Directly.
Jagruti manufactures five standard chevron cleat profiles including JAG V 250, JAG U 540, JAG V 385, JAG Y, and JAG T 750 with belt widths from 500 mm to 1200 mm and cleat heights from 15 mm to 25 mm. Custom chevron belt profiles are also engineered on request for specific material handling requirements, including oil-resistant and heat-resistant variants.
The right rubber cover grade depends on your material and operating conditions: M24 for standard abrasion-resistant applications, SAR/HAR for highly abrasive materials like cement or aggregates, HR for hot material transport, OR for oil and grease environments, and custom grades for unique process requirements. Jagruti's conveyor engineering team provides application-specific grade recommendations.
